Product Summary

The ADXL150JQC is a low noise, low power, single/dual axis accelerometer. These improved replacements for the ADXL50 offer lower noise, wider dynamic range, reduced power consumption and improved zero g bias drift. The two sensitive axes of the ADXL250 are orthogonal (90℃) to each other.

Parametrics

ADXL150JQC absolute maximum ratings: (1)acceleration: 2000g; (2)+Vs: -0.3 to 7V; (3)output short circuit duration: indefinite; (4)operating temperature: -55 to 125℃; (5)storage temperature: -65 to 150℃.

Features

ADXL150JQC features: (1)Low Power: <2 mA per Axis; (2)Supply Voltages as Low as 4 V; (3)2-Pole Filter On-Chip; (4)Ratiometric Operation; (5)Complete Mechanical & Electrical Self-Test; (6)Dual&Single Axis Versions Available; (7)Surface Mount Package.

Diagrams

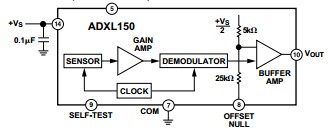

ADXL150JQC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

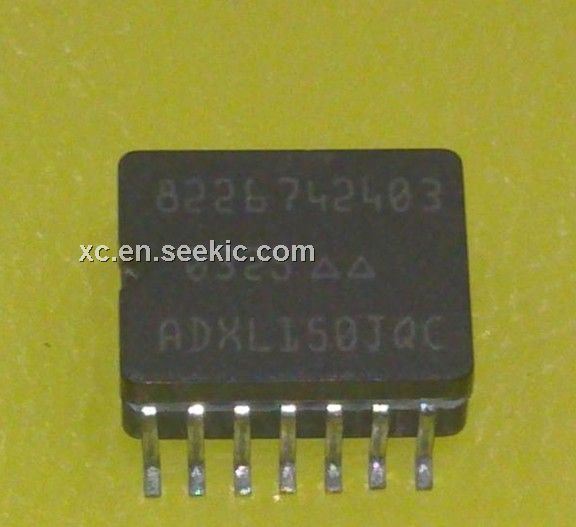

ADXL150JQC
ADXL150JQC

Analog Devices Inc

IC ACCELEROMETER SGL 14CERPAK

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADXL001
ADXL001

Other


Data Sheet

Negotiable
ADXL001-250BEZ
ADXL001-250BEZ


IC ACCELEROMETER 250G 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
ADXL001-250BEZ-R7
ADXL001-250BEZ-R7


IC ACCELEROMETER 250G 8CLCC

Data Sheet

0-1: $34.76
1-10: $32.78
10-25: $30.79
25-100: $29.20
ADXL001-500BEZ
ADXL001-500BEZ


IC ACCELEROMETER 500G 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
ADXL001-500BEZ-R7
ADXL001-500BEZ-R7


IC ACCELEROMETER 500G 8CLCC

Data Sheet

Negotiable
ADXL001-70BEZ
ADXL001-70BEZ


IC ACCELEROMETER 70G 22KHZ 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
