Product Summary
The L9822N is an octal serial solenoid driver. Data is transmitted serially to the device using the Serial Peripheral Interface (SPI) protocol. The L9822N features the outputs status monitoring function.
Parametrics
L9822N absolute maximum ratings: (1)DC logic supply: -0.7 to 7V; (2)output voltage: -0.7 to 40V; (3)input transient current: ±25mA; (4)junction and storage temperature range: -40 to 150℃.
Features
L9822N features: (1)eight low RDSon DMOS outputs; (2)8 bit serial diagnostic output for overload and open circuit conditions; (3)cascadable with another octal driver; (4)low quiescent current; (5)8 bit serial input data.

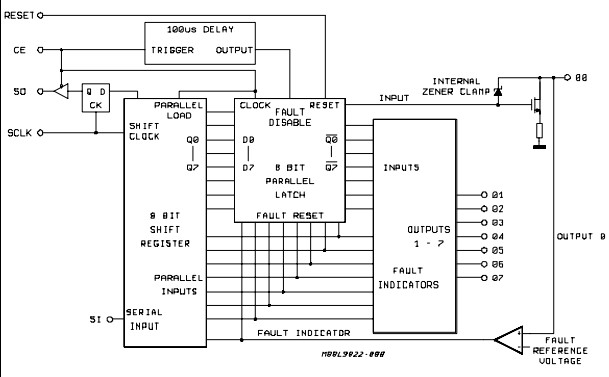

Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
L9822N |
STMicroelectronics |
Power Switch ICs - Power Distribution OCTAL SOLENOID DRVR |
Data Sheet |
Negotiable |
|
|||||
L9822N013TR |
STMicroelectronics |
Power Switch ICs - Power Distribution OCTAL SOLENOID DRVR |
Data Sheet |
Negotiable |
|
