Product Summary

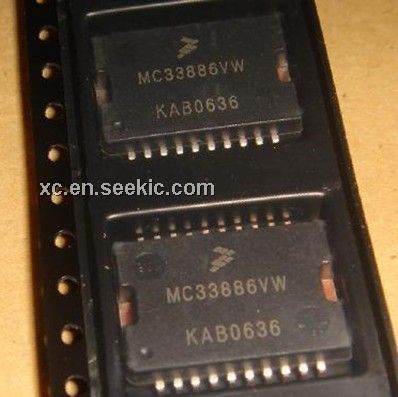

The MC33886VW is a monolithic H-bridge ideal for fractional horsepower DC-motor and bi-directional thrust solenoid control. The IC incorporates internal control logic, charge pump, gate drive, and low RDS MOSFET output circcuitry.
Parametrics
MC33886VW absolute maximum ratings: (1)supply voltage: 40V; (2)input voltage: -0.1 to 7V; (3)FS status output: 7V; (4)continuous current: 5A; (5)ESD voltage for VW package: 2000V; (6)storage temperature: -65 to 150℃; (7)ambient operating temperature: -40 to 125℃; (8)operating junction temperature: -40 to 150℃.
Features
MC33886VW features: (1)5.0 V to 40 V Continuous Operation; (2)120 mΩ RDS(ON) H-Bridge MOSFETs; (3)TTL /CMOS Compatible Inputs; (4)PWM Frequencies up to 10 kH; (5)Output Short-circuit Protection; (6)Under-voltage Shutdown; (7)Fault Status Reporting.

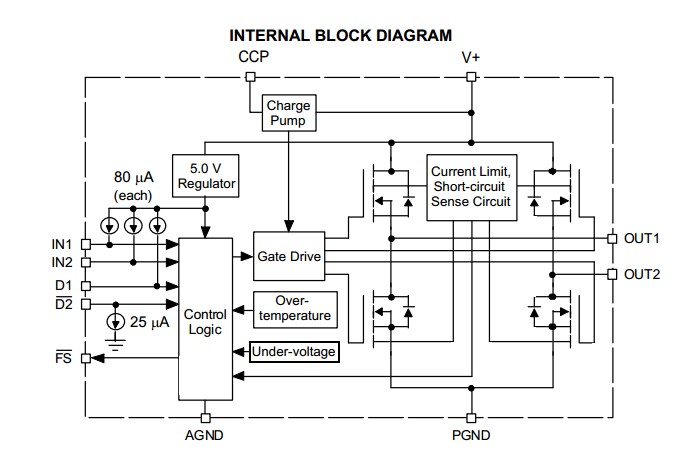

Diagrams
