Product Summary

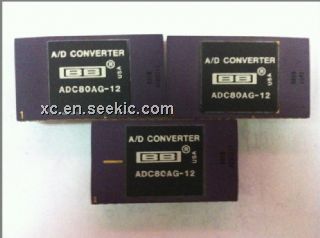

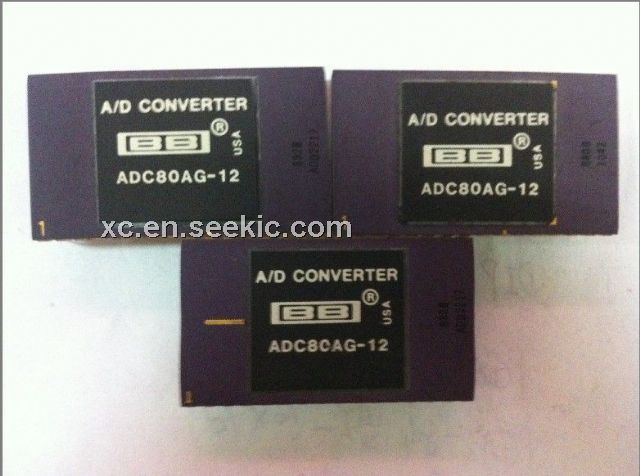

The ADC80AG-12 is a general purpose analog-to-digital converter. It is complete with a comparator, a monolithic 12-bit DAC which includes a 6.3V reference laser-trimmed for minimum temperature coefficient, and a CMOS logic chip containing the successive approximation register.
Parametrics
ADC80AG-12 absolute maximum ratings: (1)VCC to analog common: 0 to 16.5V; (2)-VCC to analog common: 0 to -16.5V; (3)analog common to digital common: ±0.5V; (4)lead temperature: 300℃.
Features
ADC80AG-12 features: (1)industry-standard 12-bit ADC; (2)low cost; (3)no missiong codes; (4)parallel and serial outputs; (5)595mW max dissipation; (6)25μs max conversion time.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
ADC80AG-12 |
Texas Instruments |
IC 12 BIT A/D CONV 32 CERDIP |
Data Sheet |
Negotiable |
|
|||||
