Product Summary

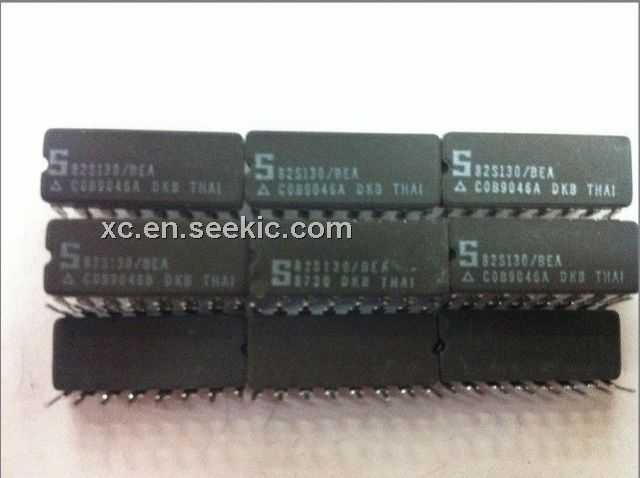

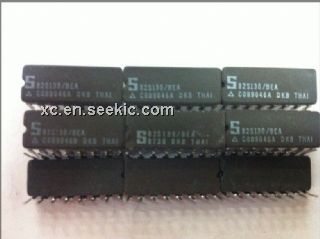

The 82S130 is a 2K-bit TTL bipolar PROM. It means that custom patterns are immediately available by following the signetics gegoric fusing procedure. Its applications include code conversion, random logic, control store, hardwired, microproagramming.

Parametrics

82S130 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltage: 5.5V; (4)output voltage off-state: -5.5V; (5)operating temperature: 0 to 75℃; (6)storage temperature: -65 to 150℃.

Features

82S130 features: (1)address access time: 50ns max; (2)power dissipation: 0.3mW/bit typ; (3)input loading: -100μA max; (4)on-chip address decoding; (5)one chip enable input; (6)output option: 3-state.

Diagrams

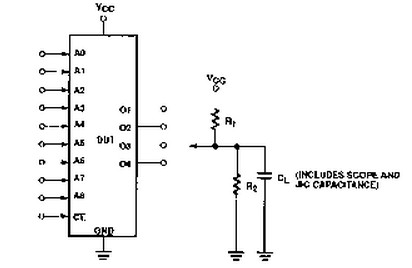

82S130 testload circuit
