Product Summary

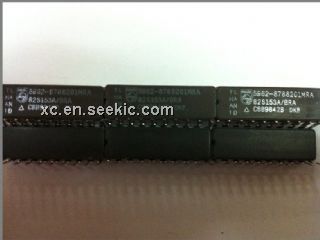

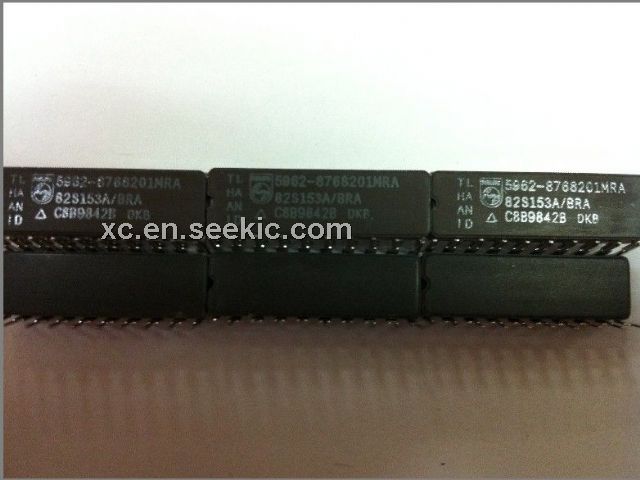

The 82S153 is a field programmable logic array. It consists of 32 AND gates and 10 OR gates with fusible link connections for programming I/O polarity and direction. All AND gates are linked to 8 inputs.

Parametrics

82S153 absolute maximum ratings: (1)supply voltage: 7Vdc; (2)input voltage: 5.5V; (3)output voltage: 5.5V; (4)output current: 100mA; (5)storage temperature: -65 to 150℃.

Features

82S153 features: (1)field programmable; (2)32AND gates; (3)8 inputs; (4)active high or low outputs; (5)10 bidirectional I/O lines; (6)I/O propagation delay.

Diagrams

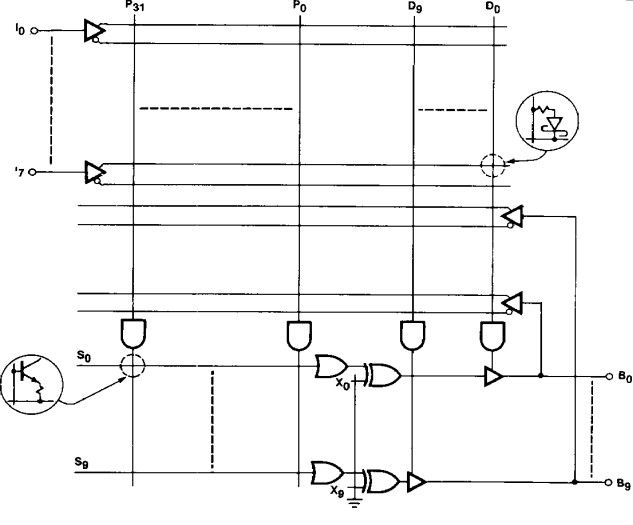

82S153 block diagram
