Product Summary

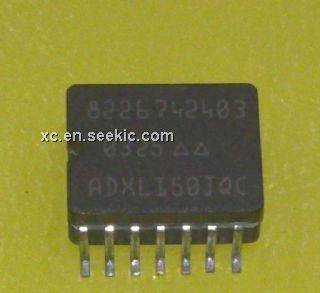

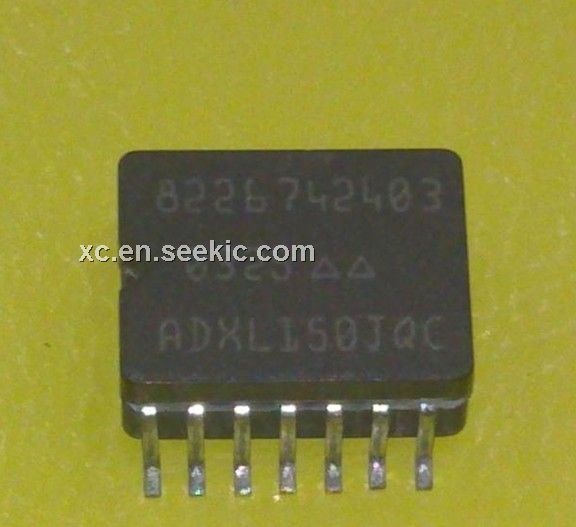

The ADXL150 is a single/dual axis accelerometer. It is a fully integrated dual axis accelerometer with signal conditioning on a single monolithic IC, the first of its kind available on the commercial market. The two sensitive axes of the ADXL250 are orthogonal to each other. Both devices have their sensitive axes in the same plane as the silicon chip.
Parametrics
ADXL150 absolute maximum ratings: (1)acceleration: 2000g; (2)output short circuit duration: indefinite; (3)operating temperature: -55 to 125℃; (4)storage temperature: -65 to 150℃.
Features
ADXL150 features: (1)Supply Voltages as Low as 4 V; (2)2-Pole Filter On-Chip; (3)Ratiometric Operation; (4)Complete Mechanical & Electrical Self-Test; (5)Dual & Single Axis Versions Available; (6)Surface Mount Package.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||
---|---|---|---|---|---|---|---|---|---|---|
ADXL150 |
Other |
Data Sheet |
Negotiable |
|
||||||
ADXL1501AQC |
Other |
Data Sheet |
Negotiable |
|
||||||
ADXL150AQC |
Analog Devices Inc |
IC ACCELEROMETER LP SGL 14CERPAK |
Data Sheet |
Negotiable |
|
|||||
ADXL150EM-1 |
Analog Devices Inc |
EVAL MODULE ACCELER TRI-AX 50G |
Data Sheet |
Negotiable |
|
|||||
ADXL150EM-3 |
Analog Devices Inc |
EVAL MODULE ACCELER TRI-AX 50G |
Data Sheet |
Negotiable |
|
|||||
ADXL150JQC |
Analog Devices Inc |
IC ACCELEROMETER SGL 14CERPAK |
Data Sheet |
Negotiable |
|
