Product Summary
The 82S141 is a bipolar prom. It is field programmable, which means that custom patterns are immediately available by following the fusing procedure given in this data manual.
Parametrics
82S141 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltage: 5.5V; (4)temperature range: 0 to 75℃; (5)storage temperature: -65 to 150℃.
Features
82S141 features: (1)power dissipation: 0.17mW/bit; (2)on-chip address decoding; (3)output options; (4)fullly TTL compatible; (5)unprogrammed outputs are low level; (6)no separate fusing pins.

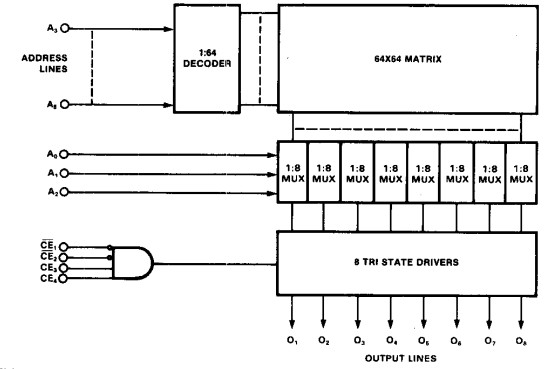

Diagrams
