Product Summary

The 82S16 is a 256-bit bipolar RAM. Its applications include buffer memory, writable control store, memory mapping, push down stack, scratch pad.

Parametrics

82S16 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltage: 5.5V; (4)temperature range: 0 to 70℃; (5)storage temperature: -65 to 150℃.

Features

82S16 features: (1)address access time: 70ns max; (2)write cycle time: 70ns max; (3)power dissipation: 1.5mW/bit typ; (4)input loading; (5)output follows complement of data input during write.

Diagrams

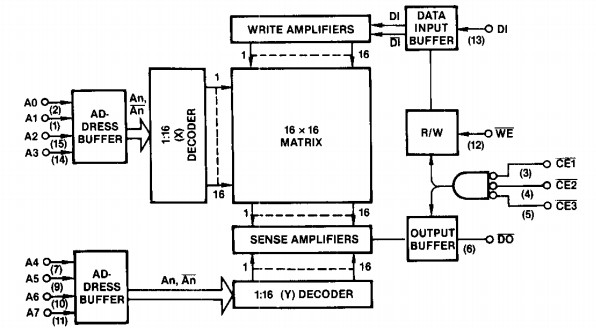

82S16 block diagram
