Product Summary

The VND5025AKTR-E is a double channel high side driver with analog current sense for automotive applications. It is intended for driving resistive or inductive loads with one side connected to ground, and suitable for driving LEDs.

Parametrics

VND5025AKTR-E absolute maximum ratings: (1)DC supply voltage: 41V; (2)reverse DC supply voltage: 0.3V; (3)DC reverse ground pin current: 200mA; (4)DC input current: -1 to 10mA; (5)current sense maximum voltage: VCC-41 to +VCCV; (6)maximum switching energy: 140mJ.

Features

VND5025AKTR-E features: (1)Proportional load current sense; (2)High current sense precision for wide range currents; (3)Current sense disable; (4)Thermal shutdown indication; (5)Very low current sense leakage.

Diagrams

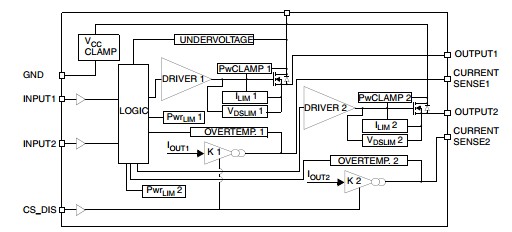

VND5025AKTR-E block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VND5025AKTR-E
VND5025AKTR-E

STMicroelectronics

Power Driver ICs Double Ch Hi Side Driver analog

Data Sheet

0-605: $1.49
605-1000: $1.26
1000-2000: $1.19
2000-5000: $1.15
