Product Summary

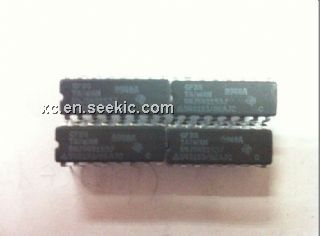

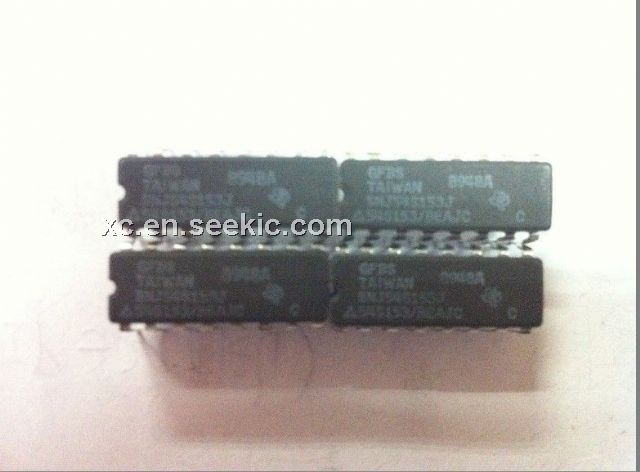

The 54S153 is a dual 4-line to 1-line data selectors.
Parametrics
54S153 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.6V; (3)operating free-air temperature range: -55 to 125℃; (4)storage temperature range: -65 to 150℃.
Features
54S153 features: (1)permits multiplexing from N line to 1 line; (2)performs parallel-to-serial conversion; (3)strobe line provided for cascading; (4)high-fan-out, low impedance, totem-pole outputs; (5)fully compatible with most TTL circuits.
Diagrams
