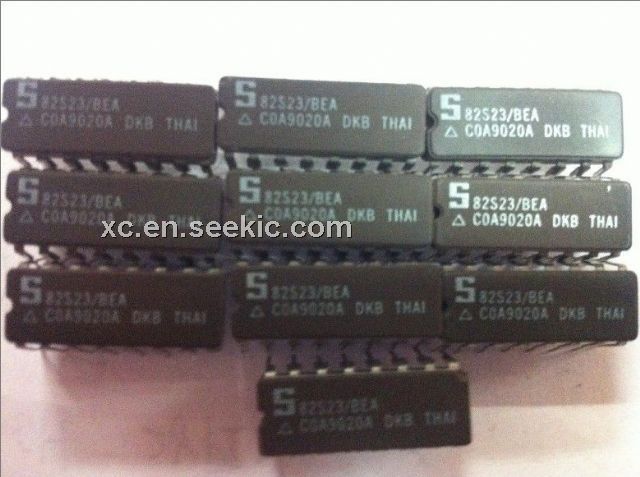

Product Summary

The 82S23 is a 256-bit TTL bipolar PROM. Custom patterns are immediately available by following the Signetics Generic I fusing procedure. The 82S23 and 82S123 devices are supplied with all outputs at logical Low. Outputs are programmed to a logic High level at any specified address by fusing the Ni-Cr link matrix. Its applications include Prototyping/volume production, Sequential controllers, Format conversion, Hardwired algorithms, Random logic.

Parametrics

82S23 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltage high: 5.5V; (4)output voltage off-state: 5.5V; (5)operating temperature range: 0 to 75℃; (6)storage temperature range: -65 to 150℃.

Features

82S23 features: (1)Address access time: 50ns max; (2)Power dissipation: 1.3mW/bit typ; (3)Input loading: –100µA max; (4)On-chip address decoding; (5)One Chip Enable input.

Diagrams

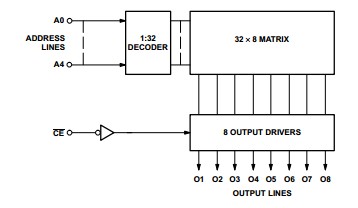

82S23 block diagram
