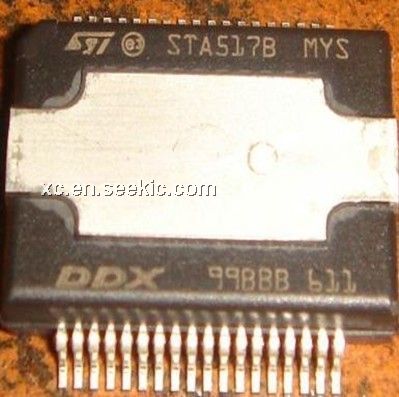

Product Summary
The STA517B is a quad power half bridge. The device can be used as dual bridge or reconfigured, by connecting CONFIG pin to Vdd pin, as single bridge with double current capability, and as half bridge (Binary mode) with half current capability.
Parametrics
STA517B absolute maximum ratings: (1)DC supply voltage: 60V; (2)Maixmum voltage on pins: 5.5V; (3)operating temperature range: 0 to 70℃; (4)storage and junction temperature: -40 to 150℃.
Features
STA517B features: (1)Minimum input output pulse width distortion; (2)200 mΩ RdsON complementary DMOS output stage; (3)CMOS compatible logic inputs; (4)Thermal protection; (5)Thermal warning output; (6)Under voltage protection.

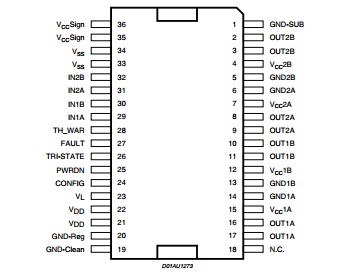

Diagrams
