Product Summary

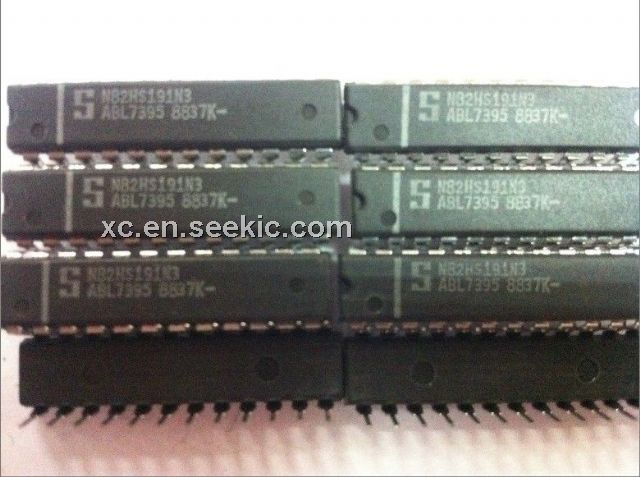

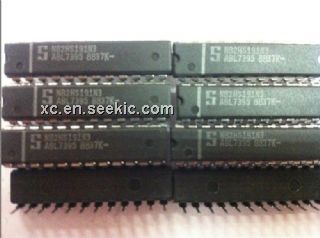

The N82HS191 is a 16k-bit TTL bipolar PROM. Custom patterns are immediately available by following the signetics generic II fusing procedure.
Parametrics
N82HS191 absolute maximum ratings: (1)supply voltage: 7V; (2)input voltage: 5.5V; (3)output voltag off-state: 5.5V; (4)operating temperature range: 0 to 75℃; (5)storage temperature range: -65 to 150℃.
Features
N82HS191 features: (1)low power dissipation; (2)address access time: 45ns max; (3)input loading: -250μA max; (4)two chip enable inputs; (5)on-chip address decoding; (6)no separate fusing pins.
Diagrams
