Product Summary

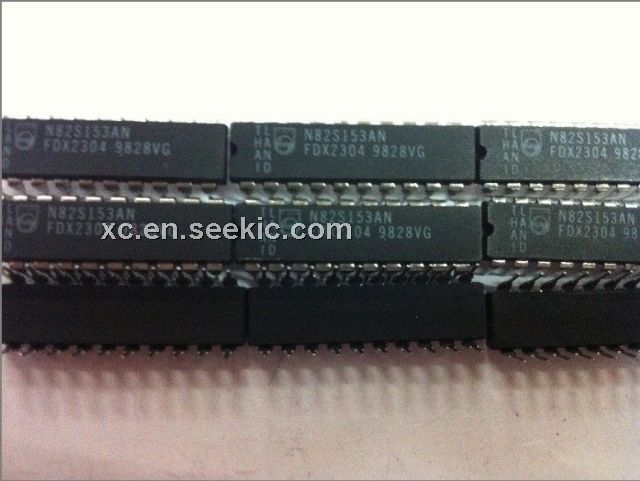

The N82S153 is a field programmable logic array. Its applications include random logic, code converters, fault detectors, fnction generators, address mapping, multiplier.
Parametrics
N82S153 absolute maximum ratings: (1)supply voltage: 17V; (2)input voltage: 10V; (3)output voltage: 5.5V; (4)input current: ±30mA; (5)operating temperature: -55 to 125℃; (6)storage temperature range: -65 to 150℃.
Features
N82S153 features: (1)filed-grogrammable; (2)10OR gates; (3)10 bidirectional I/O lines; (4)42 product terms; (5)I/O programation delay: 42ns; (6)input loading: -150μA.

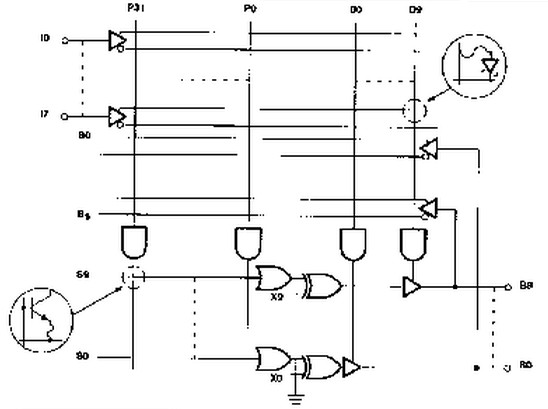

Diagrams
