Product Summary

The VN380SP13TR is a smart solenoid driver solid state relay. It is intended for driving inductive loads. The inputs are CMOS compatible. The diagnostic output provides an indication of open load and demagnetization mode. Built-in thermal shut-down protects the chip from over-temperature.

Parametrics

VN380SP13TR absolute maximum ratings: (1)reverse load current: -10A; (2)maximum clamping energy: 100mJ; (3)inputs current: ±10mA; (4)power voltage: 60V; (5)power voltage2: 60V; (6)storage temperature: -55 to 150℃; (7)input voltages: 8V.

Features

VN380SP13TR features: (1)load current up to 7A; (2)cmos compatible; (3)thermal shutdown; (4)dignostic output; (5)over current protection; (6)over voltage dection.

Diagrams

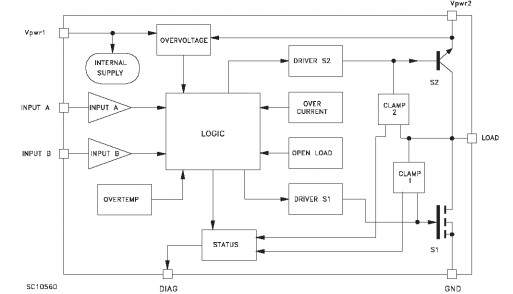

VN380SP13TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

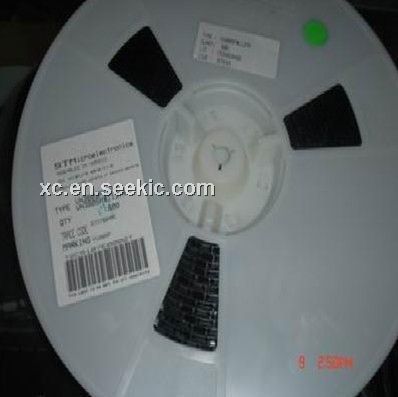

VN380SP13TR
VN380SP13TR

STMicroelectronics

Solid State Relays VIPOWER

Data Sheet

0-365: $2.42
365-600: $2.05
600-1200: $1.94
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
VN380
VN380

Other


Data Sheet

Negotiable
VN380SP
VN380SP

STMicroelectronics

Solid State Relays VIPOWER

Data Sheet

0-705: $2.19
705-1000: $1.99
1000-2000: $1.90
VN380SP13TR
VN380SP13TR

STMicroelectronics

Solid State Relays VIPOWER

Data Sheet

0-365: $2.42
365-600: $2.05
600-1200: $1.94
VN380SP-E
VN380SP-E

STMicroelectronics

Power Switch ICs - Power Distribution Standard Function High Side Switch

Data Sheet

0-110: $2.84
110-250: $2.77
250-500: $2.19
500-1000: $2.14
VN380SPTR-E
VN380SPTR-E

STMicroelectronics

Power Switch ICs - Power Distribution Standard Function High Side Switch

Data Sheet

0-325: $2.70
325-500: $2.42
500-600: $2.42
600-1000: $2.05
