Product Summary

The ADXL190WQC is a low cost single axis accelerometer with analog output. It contains a polysilicon surfacemicromachined sensor and signal conditioning circuitry to implement an open-loop acceleration measurement architecture. The ADXL190WQC is capable of measuring both positive and negative accelerations up to ±100 g, making it suitable for shock and vibration measurement.

Parametrics

ADXL190WQC absolute maximum ratings: (1)acceleration: 2000g; (2)+Vs: -0.3 to 7V; (3)short circuit duration: indefinite; (4)operating temperature: -55 to 125℃; (5)storage temperature: -65 to 150℃.

Features

ADXL190WQC features: (1)40 Milli-g Resolution; (2)Low Power 2 mA; (3)400 Hz Bandwidth; (3)+5.0 V Single Supply Operation; (4)2000 g Shock Survival.

Diagrams

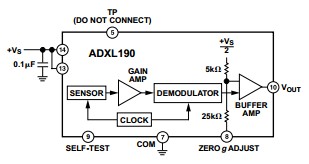

ADXL190WQC block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

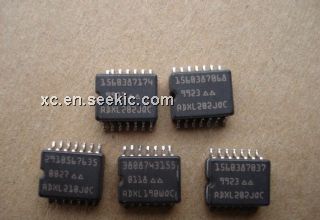

ADXL190WQC
ADXL190WQC

Analog Devices Inc

IC ACCELER SNGL-AX 100G 14CERPAK

Data Sheet

Negotiable
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
ADXL001
ADXL001

Other


Data Sheet

Negotiable
ADXL001-250BEZ
ADXL001-250BEZ


IC ACCELEROMETER 250G 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
ADXL001-250BEZ-R7
ADXL001-250BEZ-R7


IC ACCELEROMETER 250G 8CLCC

Data Sheet

0-1: $34.76
1-10: $32.78
10-25: $30.79
25-100: $29.20
ADXL001-500BEZ
ADXL001-500BEZ


IC ACCELEROMETER 500G 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
ADXL001-500BEZ-R7
ADXL001-500BEZ-R7


IC ACCELEROMETER 500G 8CLCC

Data Sheet

Negotiable
ADXL001-70BEZ
ADXL001-70BEZ


IC ACCELEROMETER 70G 22KHZ 8CLCC

Data Sheet

0-1: $33.77
1-10: $31.79
10-100: $28.41
100-250: $26.82
250-500: $26.49
