Product Summary

The VNQ660SP13TR is a quad channel high side solid state relay. It is made by using STMicroelectronics VIPower M0-3 Technology, intended for driving resistive or inductive loads with one side connected to ground.

Parametrics

VNQ660SP13TR absolute maximum ratings: (1)Supply voltage: 41V; (2)reverse DC supply voltage: -0.3V; (3)reverse DC output current, per each channel: -15A; (4)input current: ±10mA; (5)DC ground current: -200mA.

Features

VNQ660SP13TR features: (1)CMOS compatible inputs; (2)Off state open load detection; (3)Undervoltage and overvoltage shutdown; (4)Overvoltage clamp; (5)Thermal shutdown; (6)Current limitation; (7)Very low standby power dissipation; (8)Protection against loss of ground and loss of VCC.

Diagrams

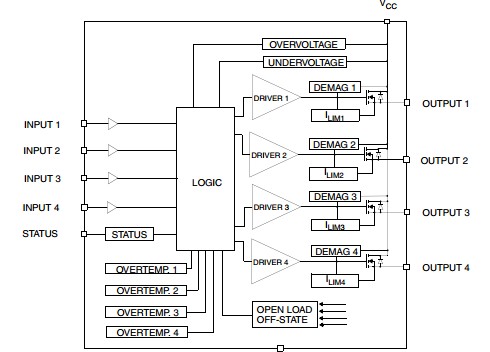

VNQ660SP13TR block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VNQ660SP13TR
VNQ660SP13TR
STMicroelectronics
Power Switch ICs - Power Distribution Quad Channel Hi-Side
Data Sheet
0-325: $3.64
325-600: $3.05
600-1200: $2.66
1200-2400: $2.56
